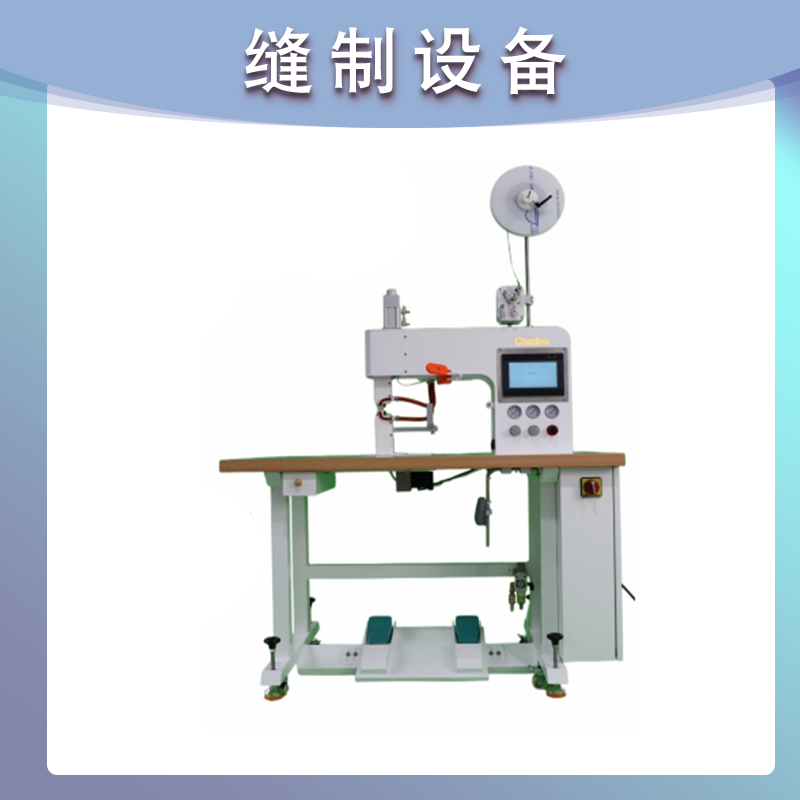

设备功能:各种鞋类，服装无缝包边/封边工序设备用途:用于各类包边产品

电力要求:单相AC220V，50HZ/60HZ

额定功率:3.5KW

气压要求:稳定 5kg/cm'的气压(不带水气)风嘴温度范围:室温一250℃(建议温度在250℃C以下)熔接速度:可达1米/分钟操作方式:双脚踏(左脚控制上下轮动作，右脚控制滚轮转动)上皮带规格:420*25mm(高温硅胶)下皮带规格:420*25mm(高温硅胶)滚轮提起高度:0-18mm电机数量:2组(数字步进电机连驱动器)机器尺寸:1200*657*1650mm包装尺寸:1240*700*1500mm

Featutre:

Device Function: Seamless edge wrapping/edge sealingprocesses for various types of shoes and gamentsDevice Purpose:Used for various edge-wrapped productsPower Requirement: Single-phase AC220V, 50HZ/60HZRated Power: 3.5KW

Air Pressure Requirement: Stable air pressure of 5kg/cm?(without water vapor)

Air Nozzle Temperature Range: Room temperature to250'C(lt is recommended that the temperature be below250“C)

Welding Speed:Up to 1 meter per minuteOperation Mode:Double foot pedals (The left foot controlsthe up-and-down movement of the wheels, and the rightfoot controls the rotation of the roller)Upper Belt Specification:

420*25mm(High-temperature silicone)Lower Belt Specification:

420*25mm(High-temperature silicone)

Lifting Height of the Roller:0 to 18mmNumber of Motors:2 groups (Digital stepper motors

connected to drivers)

Machin鵯荽e Dimensions: 1200*657*1650mmPackaging Dimensions: 1240*700*1500mm
